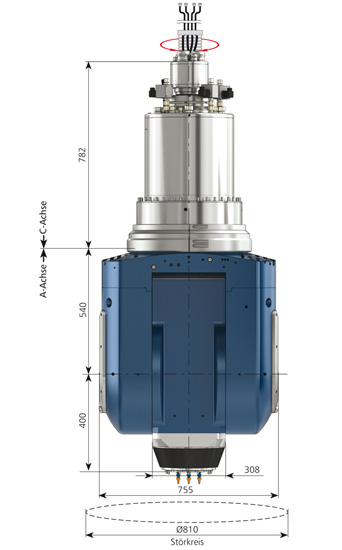

Fork milling head

G-SERIES HD

Heavy Duty Machining with up to 824 Nm

Sheer power and highly dynamic at the same time - without compromises from rough to fine 5-axis machining.

*Example with CS-73-260-A

	A-axis	C-axis
Nom. torque [Nm]	2,730	2,400
Max. torque [Nm]	5,080	4,700
Nom. current [A]	54	30
Clamping torque 60bar [Nm]	7,500	7,500

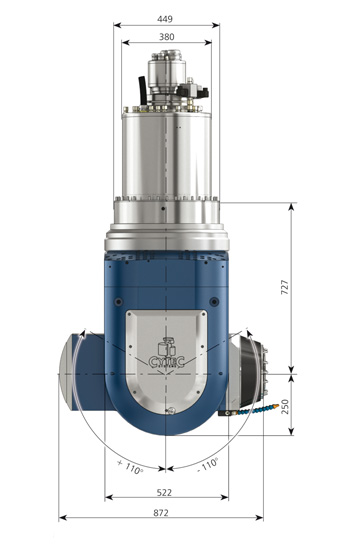

Swivel angle [°]	±110	±360 (cont.)
Measuring system	absolute	absolute
Positioning accuracy["]	±2.5	±2
Speed max. ^{[min -1]}	60	40
Total weight ca. [kg]	2100

MATCHING SPINDLES

Motor spindle series

CS-75-260-A

Power S1 [kW]	75
Power S6 [kW]	94
Torque S1 [Nm]	484
Torque S6 [Nm]	620
Tool interface	HSK-A100 / SK50
Bearing lubrication	Grease
Nom. speed ^{[min -1]}	1600
Max. speed ^{[min -1]}	10000
Length [mm]	780
Available options

Motor spindle series

CS-115-260-S

Power S1 [kW]	115
Power S6 [kW]	138
Torque S1 [Nm]	700
Torque S6 [Nm]	824
Tool interface	HSK-A100 / SK50
Bearing lubrication	Grease
Nom. speed ^{[min -1]}	1600
Max. speed ^{[min -1]}	5000
Length [mm]	780
Available options

Motor spindle series

CS-73-260-A

Power S1 [kW]	73
Power S6 [kW]	92
Torque S1 [Nm]	398
Torque S6 [Nm]	508
Tool interface	HSK-A100
Bearing lubrication	Grease
Nom. speed ^{[min -1]}	1750
Max. speed ^{[min -1]}	5000
Length [mm]	780
Available options
