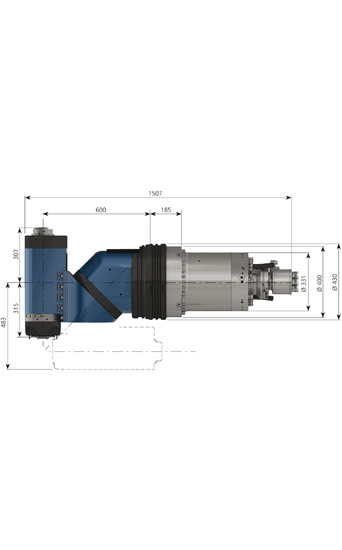

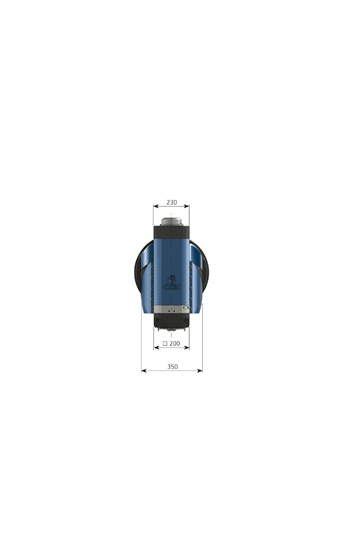

Universal milling head (double axis)
M-SERIES 2 X 45°
For milling machines
Suitable for horizontal and vertical machine tools.
| A-axis | C-axis | |
|---|---|---|
| Nom. torque [Nm] | 552 | 1,022 |
| Max. torque [Nm] | 1,058 | 1,985 |
| Nom. current [A] | 14 | 30 |
| Clamping torque 60bar [Nm] | 2,000 | 4,000 |
| Swivel angle [°] | ±180 | ±360 (cont.) |
| Measuring system | absolute | absolute |
| Positioning accuracy["] | ±2 | ±2 |
| Total weight ca. [kg] | 870 | |
MATCHING SPINDLES
Motor spindle series
CS-21-180-A
| Power S1 [kW] | 21 |
|---|---|
| Power S6 [kW] | 27 |
| Torque S1 [Nm] | 100 |
| Torque S6 [Nm] | 130 |
| Tool interface | HSK-A63 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 18000 |
| Length [mm] | 546 |
| Available options |
Motor spindle series
CS-27-180-S
| Power S1 [kW] | 27 |
|---|---|
| Power S6 [kW] | 32 |
| Torque S1 [Nm] | 130 |
| Torque S6 [Nm] | 170 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 12000 |
| Length [mm] | 546 |
| Available options |
Motor spindle series
CS-28-180-A
| Power S1 [kW] | 28 |
|---|---|
| Power S6 [kW] | 35 |
| Torque S1 [Nm] | 90 |
| Torque S6 [Nm] | 113 |
| Tool interface | HSK-A63 |
| Bearing lubrication | Grease / Oil/Air |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 20000 |
| Length [mm] | 546 |
| Available options |
Motor spindle series
CS-34-180-S
| Power S1 [kW] | 34 |
|---|---|
| Power S6 [kW] | 43 |
| Torque S1 [Nm] | 170 |
| Torque S6 [Nm] | 220 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 12000 |
| Length [mm] | 622 |
| Available options |
Motor spindle series
CS-40-180-S
| Power S1 [kW] | 40 |
|---|---|
| Power S6 [kW] | 51 |
| Torque S1 [Nm] | 67 |
| Torque S6 [Nm] | 85 |
| Tool interface | HSK-A63 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 5700 |
| Max. speed [min -1] | 24000 |
| Length [mm] | 546 |
| Available options |
Motor spindle series
CS-42-180-S
| Power S1 [kW] | 42 |
|---|---|
| Power S6 [kW] | 53 |
| Torque S1 [Nm] | 201 |
| Torque S6 [Nm] | 253 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 12000 |
| Length [mm] | 622 |
| Available options |
