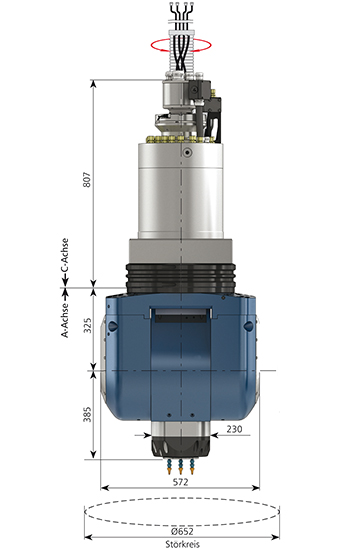

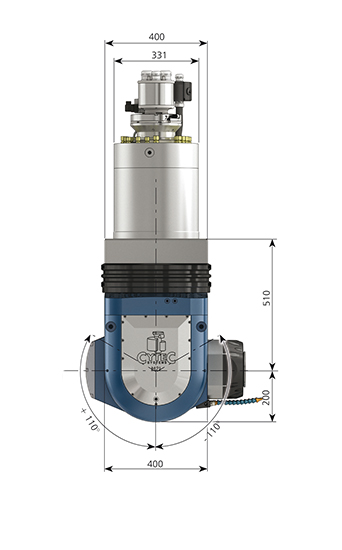

Fork milling head
M-SERIES HD
Incredibly compact powerhouse
At home in heavy machining, but due to its flexibility the ideal all-rounder for finish machining.
| A-axis | C-axis | |
|---|---|---|
| Nom. torque [Nm] | 840 | 1,020 |
| Max. torque [Nm] | 1,340 | 1,960 |
| Nom. current [A] | 30 | 30 |
| Clamping torque 60bar [Nm] | 4,000 | 4,000 |
| Swivel angle [°] | ±110 | ±360 |
| Measuring system | absolute | absolute |
| Positioning accuracy["] | ±5 | ±2 |
| Total weight ca. [kg] | 960 | |
MATCHING SPINDLES
Motor spindle series
CS-40-200-S
| Power S1 [kW] | 40 |
|---|---|
| Power S6 [kW] | 50 |
| Torque S1 [Nm] | 160 |
| Torque S6 [Nm] | 200 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2400 |
| Max. speed [min -1] | 15000 |
| Length [mm] | 671 |
| Available options |
Motor spindle series
CS-50-200-S
| Power S1 [kW] | 50 |
|---|---|
| Power S6 [kW] | 64 |
| Torque S1 [Nm] | 240 |
| Torque S6 [Nm] | 300 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 8000 |
| Length [mm] | 671 |
| Available options |
Motor spindle series
CS-70-200-S
| Power S1 [kW] | 70 |
|---|---|
| Power S6 [kW] | 90 |
| Torque S1 [Nm] | 85 |
| Torque S6 [Nm] | 105 |
| Tool interface | HSK-A63 |
| Bearing lubrication | Oil/Air |
| Nom. speed [min -1] | 8000 |
| Max. speed [min -1] | 24000 |
| Length [mm] | 671 |
| Available options |
