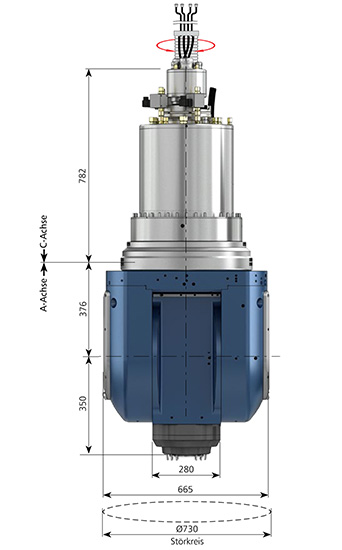

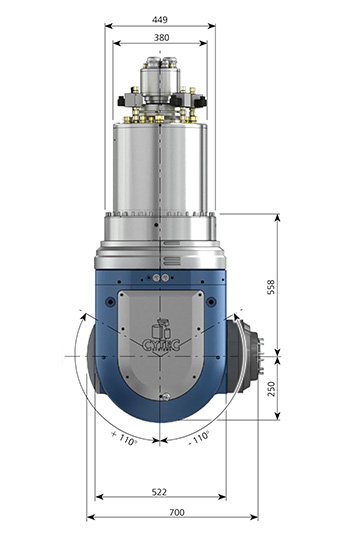

Fork milling head
G-SERIES
Best power density on the market
Perfect for aerospace, engineering and commercial vehicle production.
| A-axis | C-axis | |
|---|---|---|
| Nom. torque [Nm] | 2,000 | 1,830 |
| Max. torque [Nm] | 3,700 | 3,550 |
| Nom. current [A] | 30 | 29 |
| Clamping torque 60bar [Nm] | 7,000 | 7,000 |
| Swivel angle [°] | ±110 | ±360 (cont.) |
| Measuring system | absolute | absolute |
| Positioning accuracy["] | ±2.5 | ±2 |
| Total weight ca. [kg] | 1200 | |
MATCHING SPINDLES
Motor spindle series
CS-40-238-A
| Power S1 [kW] | 40 |
|---|---|
| Power S6 [kW] | 48 |
| Torque S1 [Nm] | 280 |
| Torque S6 [Nm] | 340 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 1350 |
| Max. speed [min -1] | 15000 |
| Length [mm] | 697 |
| Available options |
Motor spindle series
CS-42-238-S
| Power S1 [kW] | 42 |
|---|---|
| Power S6 [kW] | 55 |
| Torque S1 [Nm] | 400 |
| Torque S6 [Nm] | 525 |
| Tool interface | HSK-A100 / SK50 / C8 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 1000 |
| Max. speed [min -1] | 8000 |
| Length [mm] | 697 |
| Available options |
Motor spindle series
CS-50-238-A
| Power S1 [kW] | 50 |
|---|---|
| Power S6 [kW] | 63 |
| Torque S1 [Nm] | 248 |
| Torque S6 [Nm] | 315 |
| Tool interface | HSK-A100 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 2000 |
| Max. speed [min -1] | 15000 |
| Length [mm] | 697 |
| Available options |
Motor spindle series
CS-70-238-S
| Power S1 [kW] | 70 |
|---|---|
| Power S6 [kW] | 90 |
| Torque S1 [Nm] | 85 |
| Torque S6 [Nm] | 105 |
| Tool interface | HSK-A63 |
| Bearing lubrication | Grease |
| Nom. speed [min -1] | 7000 |
| Max. speed [min -1] | 22000 |
| Length [mm] | 614 |
| Available options |
