SÉRIE PT-01
| PT-01 | |||||||
|---|---|---|---|---|---|---|---|
| Diamètre du piston [mm] | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| D1 Diamètre de la tige [mm] | 20 | 20 | 20 | 28 | 28 | 36 | 36 |
| Course tolérance [mm] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 |
| Force de maintien [kN] | 31 | 31 | 31 | 78 | 78 | 140 | 140 |
| Force de levage [kN] | 1.96 (10 bar) | 3.12 (10 bar) | 5.03 (10 bar) | 7.85 (10 bar) | 12.27 (10 bar) | 20.11 (10 bar) | 31.42 (10 bar) |
| Force de rappel [kN] | 1.65 (10 bar) | 2.8 (10 bar) | 4.71 (10 bar) | 7.24 (10 bar) | 11.66 (10 bar) | 19.09 (10 bar) | 30.4 (10 bar) |

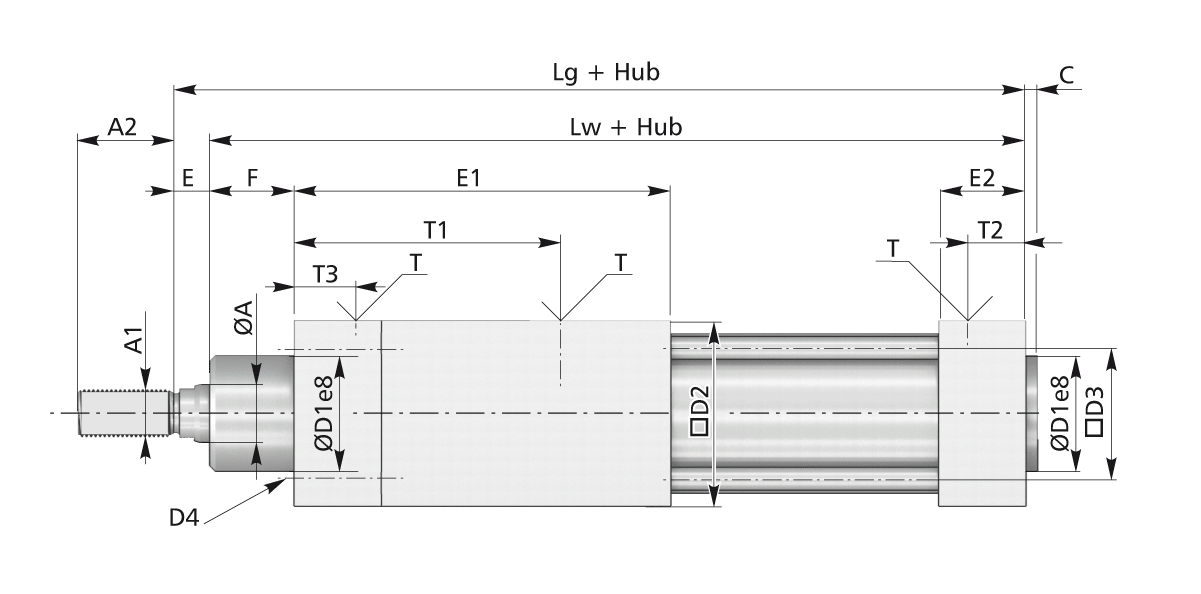

| A1 [mm] | M 16 x 1.5 | M 16 x 1.5 | M 16 x 1.5 | M 20 x 1.5 | M 20 x 2 | M 27 x 2 | M 27 x 2 |
| A2 [mm] | 33 | 33 | 33 | 40 | 40 | 48 | 48 |
| C [mm] | 4 | 4 | 5 | 5 | 6 | 4 | 5 |
| D1 [mm] | 40 | 40 | 45 | 56 | 60 | 65 | 75 |
| D2 [mm] | 64 | 74 | 94 | 114 | 140 | 180 | 220 |
| D3 [mm] | 45 | 54.5 | 69 | 86 | 110 | 140 | 175 |
| 4 x prof. filetage D4 [mm] | M 8 x 17 | M 8 x 17 | M 10 x 20 | M 10 x 20 | M 12 x 28 | M 16 x 31 | M 16 x 31 |
| E [mm] | 10 | 9 | 13 | 15 | 20 | 22 | 28 |
| E1 [mm] | 129.5 | 140.5 | 145.5 | 170 | 170.5 | 221 | 232 |
| E2 [mm] | 30 | 29 | 35 | 34 | 55 | 45 | 48 |
| Lg* + course [mm] | 240.5 | 258.5 | 275.5 | 313 | 348.5 | 416 | 461 |
| Lw* + course [mm] | 230.5 | 249.5 | 262.5 | 298 | 328.5 | 394 | 433 |
| T ["] | 1/4 | 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 |
| T1 [mm] | 118.5 | 128.5 | 131.5 | 153 | 153.5 | 198 | 214 |
| T3 [mm] | 16 | 15 | 18 | 17 | 27 | 22 | 24 |
| Type | Carré | ||||||
| Fluide de service | Système pneumatique | ||||||
| Position de verrouillage | Côté tige | ||||||
