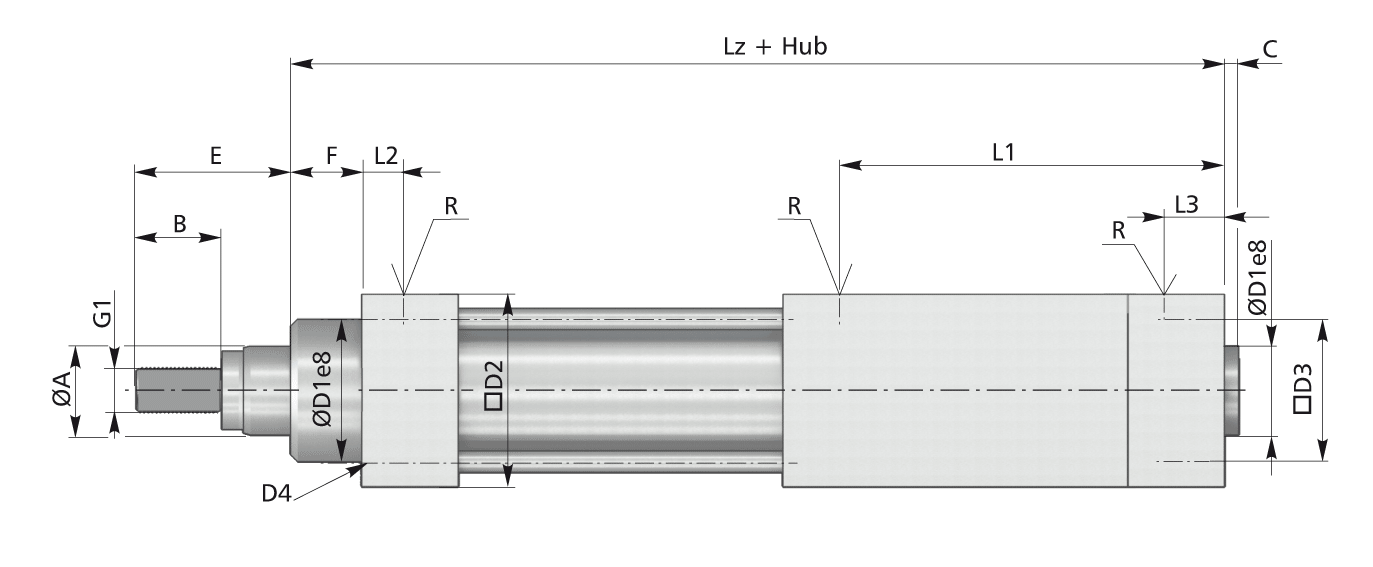

系列 KP
| KP | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 活塞直径 [mm] | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 300 |
| D1 杆直径 [mm] | 25 | 25 | 30 | 30 | 40 | 40 | 40 | 40 | 70 | 70 |
| 制动力 [kN] | 0.7 | 1.3 | 2.2 | 4 | 5.9 | 10 | 17 | 27.2 | 40.7 | 60.2 |
| 行程力 [kN] | 1.26 (10 bar) | 1.96 (10 bar) | 3.12 (10 bar) | 5.03 (10 bar) | 7.85 (10 bar) | 12.27 (10 bar) | 20.11 (10 bar) | 31.42 (10 bar) | 49.09 (10 bar) | 70.69 (10 bar) |
| 回程力 [kN] | 0.77 (10 bar) | 1.47 (10 bar) | 2.41 (10 bar) | 4.32 (10 bar) | 6.6 (10 bar) | 11.02 (10 bar) | 18.85 (10 bar) | 30.16 (10 bar) | 45.24 (10 bar) | 66.84 (10 bar) |
| B [mm] | 24 | 32 | 32 | 40 | 40 | 48 | 72 | 72 | 65 | 65 |
| C [mm] | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 22 |
| D1 [mm] | 40 | 40 | 45 | 45 | 65 | 65 | 65 | 65 | 110 | 140 |
| D2 [mm] | 54 | 64 | 74 | 94 | 114 | 140 | 180 | 220 | 280 | 315 |
| D3 [mm] | 40 | 49 | 59 | 75 | 90 | 110 | 140 | 175 | 220 | 250 |
| 4 x D4 螺纹深度 [mm] | M 6 x 10 | M 8 x 10 | M 8 x 10 | M 10 x 11 | M 10 x 11 | M 12 x 17 | M 16 x 17 | M 16 x 17 | M 20 x 28 | M 20 x 28 |
| D4 6角深度 [mm] | 4 | 5 | 5 | 6.5 | 6.5 | 9 | 9 | 9 | 18 | 18 |
| E [mm] | 32 | 44 | 42 | 55 | 55 | 68 | 94 | 100 | 111 | 111 |
| F [mm] | 20 | 25 | 25 | 33 | 32 | 53 | 58 | 67 | 95 | 144 |
| G1 [mm] | M 12 x 1.25 | M 16 x 1.5 | M 16 x 1.5 | M 20 x 1.5 | M 20 x 1.5 | M 27 x 2 | M 36 x 2 | M 36 x 2 | M 48 x 5 | M 48 x 5 |
| L1 [mm] | 131 | 141 | 153 | 153 | 167 | 184 | 195 | 192 | 209 | 158 |
| L2 [mm] | 13 | 13 | 20 | 15 | 24 | 20 | 26 | 30 | 45 | 23 |
| L3 [mm] | 13 | 13 | 14 | 17 | 17 | 20 | 20 | 20 | 34 | 22 |
| Lz* [mm] | 233 | 254 | 283 | 295 | 332 | 354 | 403 | 429 | 488 | 489 |
| R ["] | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1/2 |
| 结构 | 方形 | |||||||||
| 工作介质 | 气动 | |||||||||
